Starter/ Base Collor
The base collar is the beginning vertical member of the Ringlock Scaffolding system. It sits upon a fixed or adjustable base.
Ringlock System
Ringlock System consists of vertical standards with rosettes at every 500 mm and horizontal ledgers with a casted end and wedge.

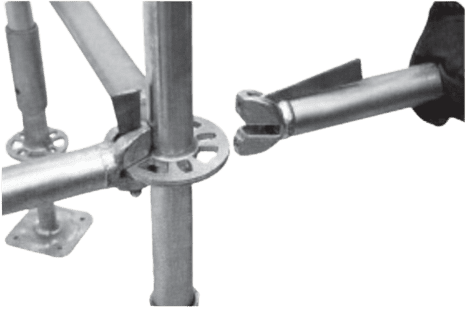

When connected together the ledger ends and rosettes create a very strong connection. It is this connection that transmits forces throughout the scaffold structure.

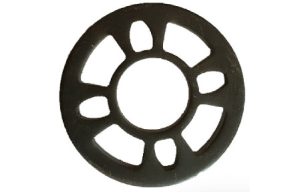

The Ringlock rosette have 8 holes, 4 of which are small and 4 are large. The smaller holes represent the 90 degree angle at which Ledgers/Transoms are fitted. The larger holes accommodate the diagonal bay braces and ledgers at variable angles.
The rosette also allows for the Ledgers to be connected into the larger holes which gives up to 15 degree of maneuverability.

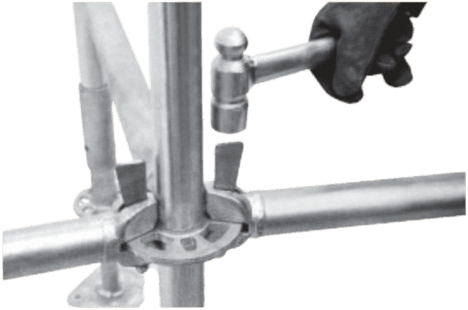

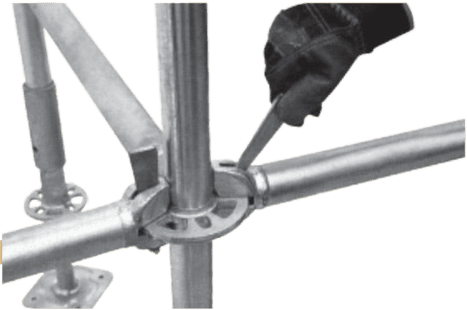

TO MAKE A CONNECTION
Standard / Vertical
Standards are the vertical members of Ringlock scaffolding that utilize a removeable spigot. The standard provides the vertical support for scaffolding.
Â

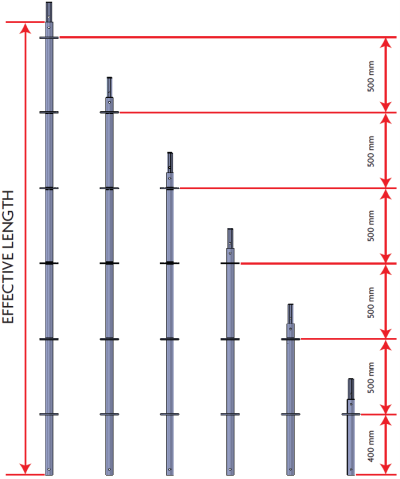

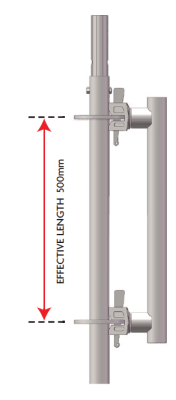

| Item Code | Description | Effective Length (mm) | Weight (Kg) |
|---|---|---|---|
| MS-RLS-001 | 1 Ring Vertical W/ Spigot | 500 | 3.1 |
| MS-RLS-002 | 2 Ring Vertical W/ Spigot | 1000 | 5.4 |
| MS-RLS-003 | 3 Ring Vertical W/ Spigot | 1500 | 7.6 |
| MS-RLS-004 | 4 Ring Vertical W/ Spigot | 2000 | 9.8 |
| MS-RLS-005 | 5 Ring Vertical W/ Spigot | 2500 | 12.1 |
| MS-RLS-006 | 6 Ring Vertical W/ Spigot | 3000 | 14.3 |
Ledger / Horizontol
Ledgers are the horizontal members of Ringlock scaffolding. They provide horizontal support for loads and planks. Ledgers can also be used as mid rail and top or hand guard rails.
Â

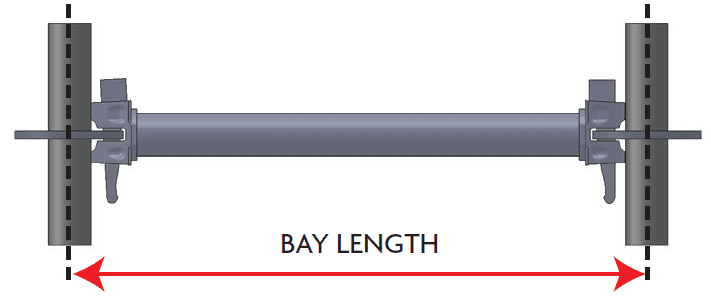

| Item Code | Description | Bay Length (mm) | Weight (Kg) |
|---|---|---|---|
| MS-RLL-001 | Ledger O Type | 610 | 2.7 |
| MS-RLL-002 | Ledger O Type | 730 | 3.2 |
| MS-RLL-003 | Ledger O Type | 914 | 3.8 |
| MS-RLL-004 | Ledger O Type | 1040 | 4.3 |
| MS-RLL-005 | Ledger O Type | 1219 | 4.9 |
| MS-RLL-006 | Ledger O Type | 1524 | 6.0 |
| MS-RLL-007 | Ledger O Type | 1574 | 6.2 |
| MS-RLL-008 | Ledger O Type | 1828 | 7.1 |
| MS-RLL-009 | Ledger O Type | 2070 | 7.9 |
| MS-RLL-010 | Ledger O Type | 2133 | 8.2 |
| MS-RLL-011 | Ledger O Type | 2570 | 9.7 |
| MS-RLL-012 | Ledger O Type | 2743 | 10.3 |
| MS-RLL-013 | Ledger O Type | 3048 | 11.4 |
| MS-RLL-014 | Ledger O Type | 3072 | 11.5 |
Double Ledgers
Double ledgers are horizontal members of Ringlock scaffolding that allow for increased load carrying capacities not possible with single tube or regular duty ledgers. They provide increased horizontal support for loads and planks.
Â

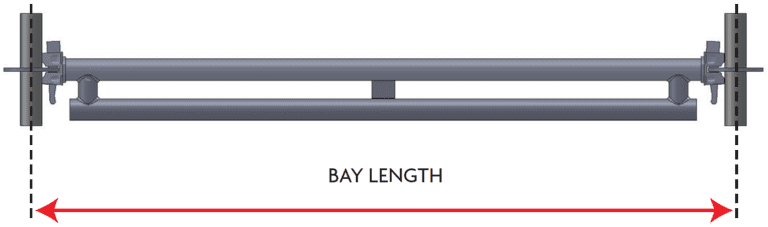

| Item Code | Description | Bay Length (mm) | Weight (Kg) |
|---|---|---|---|
| MS-RLDL-001 | Double Ledger | 1574 | 12.4 |
| MS-RLDL-002 | Double Ledger | 2133 | 15.6 |
| MS-RLDL-003 | Double Ledger | 2570 | 18.5 |
| MS-RLDL-004 | Double Ledger | 3048 | 23.5 |
Lattice Girder
Lattice girders are horizontal members of Ringlock scaffolding that allow for scaffolding over large spans or gaps.

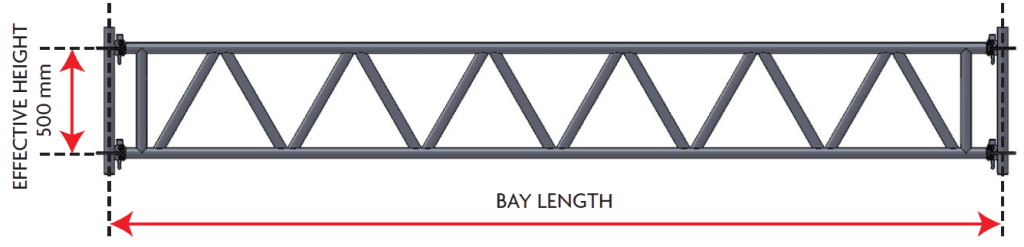

| Item Code | Description | Bay Length (mm) | Weight (Kg) |
|---|---|---|---|
| MS-RLLG-001 | Lattice Girder | 2133 | 22.7 |
| MS-RLLG-002 | Lattice Girder | 2570 | 28.4 |
| MS-RLLG-003 | Lattice Girder | 3048 | 34 |
| MS-RLLG-004 | Lattice Girder | 4268 | 44.5 |
| MS-RLLG-005 | Lattice Girder | 4876 | 49.4 |
| MS-RLLG-006 | Lattice Girder | 5486 | 55.8 |
| MS-RLLG-007 | Lattice Girder | 6096 | 64.9 |
Board Bracket
Board Brackets are used at the end of any scaffold to extend or widen the reach.

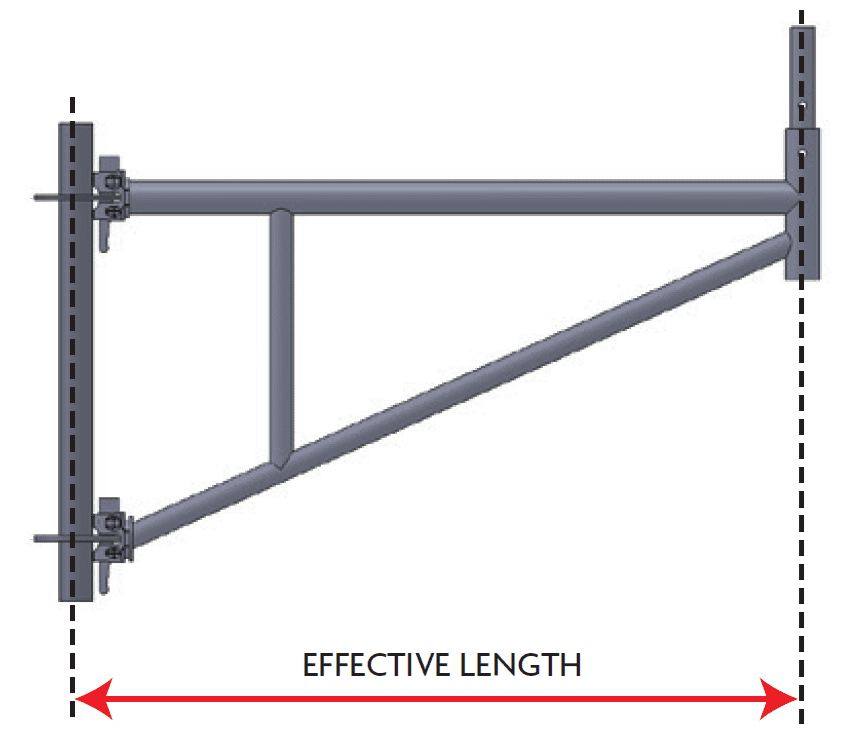

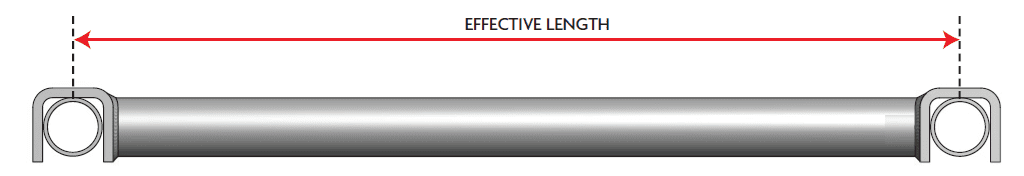

| Item Code | Description | Effective Length (mm) | Weight (Kg) |
|---|---|---|---|
| MS-RLBB-001 | 1 Board Bracket | 310 | 4.5 |
| MS-RLBB-002 | 2 Board Bracket | 650 | 7.3 |
| MS-RLBB-003 | 3 Board Bracket | 880 | 8.7 |
Brace / Diagonal

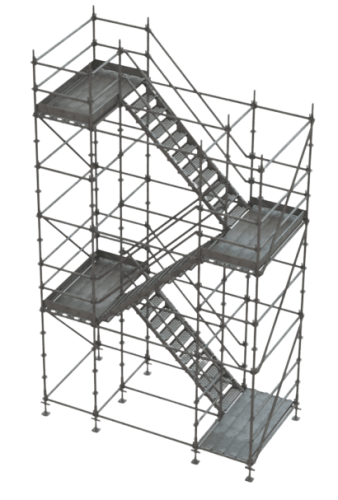

Diagonal Bay braces are used for the lateral bracing of Ringlock scaffolding. Diagonal Bay braces can also be used as obtuse angle mid rail and top or hand guard rails in conjunction with stair system.

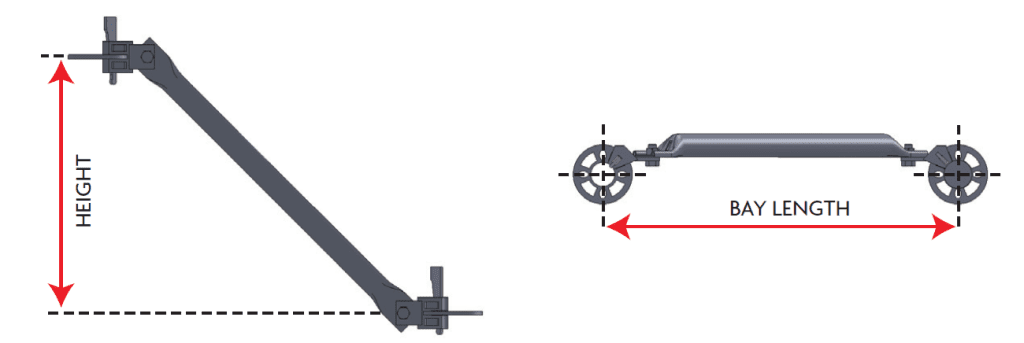

| Item Code | Description | Bay Length x Height (mm) | Weight (Kg) |
|---|---|---|---|
| MS-RLB-001 | Brace | 914 x 2000 | 8 |
| MS-RLB-002 | Brace | 1219 x 2000 | 8.3 |
| MS-RLB-003 | Brace | 1524 x 2000 | 8.7 |
| MS-RLB-004 | Brace | 1574 x 2000 | 8.9 |
| MS-RLB-005 | Brace | 2133 x 2000 | 10.1 |
| MS-RLB-006 | Brace | 3048 x 2000 | 12.1 |
| MS-RLB-007 | Brace | 3072 x 2000 | 12.2 |
Suspended Connector
Suspended Connectors are attach to the bottom rosette of the top standard and to the top rosette of the bottom standard. This joins the Standards together.
Intermediate Transom
Intermediate Transom creates a transom at the deck level anywhere inside of the bay.
| Item Code | Description | Effective Length (mm) | Weight (Kg) |
|---|---|---|---|
| MS-RLIT-001 | Intermediate Transom | 910 | 4.9 |
| MS-RLIT-002 | Intermediate Transom | 1200 | 5.8 |
| MS-RLIT-003 | Intermediate Transom | 1500 | 7.0 |
| MS-RLIT-004 | Intermediate Transom | 2100 | 9.4 |
Ringlock Accessories

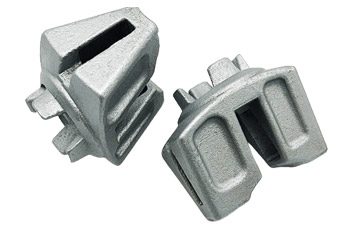

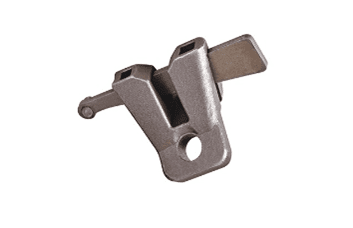

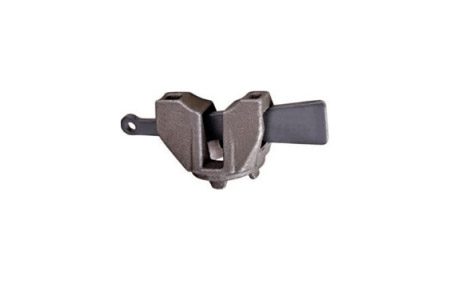

Ledger End
MS–RLLE-001
Ledger End
MS–RLLE-002
Brace End
MS-RLBE-001
Brace End
MS-RLBE-002

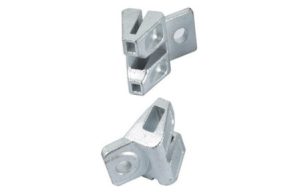

Rosette
MS-RLRST-001
