Prop
Shoring Props are retractable tubular steel props consisting of an outer tube, an inner tube, and adjustable fittings. The inner and outer tubes are usually fitted with a flat metal plate at one end to provide additional support areas. They are used in the construction industry for temporary support of ceilings, walls and trenches (shoring).
The components of the shoring prop include prop outer tube, inner tube, G pins/ straight pins, top and bottom steel plates, Prop Sleeve, Prop nuts and handles etc.
All our props are in compliance with standard BS EN 1065:1999 and are also developed as per customer’s requirement.
| Item Code | Closed Height (mm) | Open Height (mm) | Outer Tube Diameter (mm) | Inner Tube Diameter (mm) | Pipe Wall Thickness (mm) | Weight (Kg) |
|---|---|---|---|---|---|---|
| MS-SP-001 | 1500 | 2500 | 60 | 48.3 | 3.2 | 16.9 |
| MS-SP-002 | 1700 | 3000 | 60 | 48.3 | 3.2 | 18.9 |
| MS-SP-003 | 2000 | 3500 | 60 | 48.3 | 3.2 | 21.1 |
| MS-SP-004 | 2200 | 4000 | 60 | 48.3 | 3.2 | 24.8 |
*Special Size also available
Inner Tube Dia Range: 48.3 – 89 mm
Outer Tube Dia Range: 57 – 102 mm
(In S235 and S355 material Grade)
Surface Finish: Pre Galvanised, Electro Zinc, Powder Coated, Painted, Hot Dip Galvanised
TRIPOD
Tripod is placed at the bottom of the Prop and provide support to prop during assembly at construction sites.
Surface Finish: Electro Galvanised and Hot Dip Galvanised
Prop Accessories

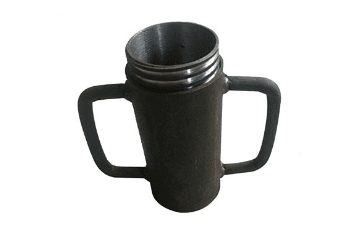

Prop Nut and Sleeve
Length: 125 mm – 135 mm
MS-PNS-001
Prop Nut and Sleeve with Welded Dust Cap
Length: 210 mm – 230 mm
MS-PNS-002
Dust Cap
MS-PDC-001
Prop Plate
(Plate Size:)
100 x 100 x 4 mm
120 x 120 x 5 mm
150 x 150 x 6 mm
150 x 150 x 8 mm
MS-PP-001
Prop Locking Pin
Dia: 10 mm – 16 mm
MS-LP-001
Heavy Duty Prop Sleeve
Length: 210 mm – 400 mm
MS-HDS-001
Heavy Duty Prop Nut
MS-HDN-001
Four Way Head Plate
MS-FWP-001
